2021 Changes in the Canadian Electrical Code: Class 2 Transformer Overcurrent Protection

A series by guest writer Steve Douglas, Senior Technical Codes Specialist, QPS

This is the fourth in the series of articles detailing significant changes for the 2021 Canadian Electrical Code Part I (CE Code) that may impact electrical equipment manufacturers. A full copy of the CE Code is available at https://www.csagroup.org/store/.

Through my knowledge and experience, it has been common practice for many years to install a Class 2 transformer with 15 A overcurrent protection in the primary circuit. However, the wording in the 2018 CE Code does not allow this practice.

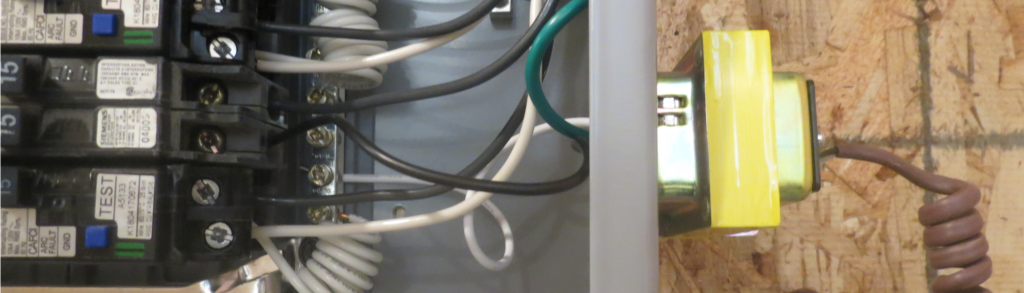

Image courtesy of QPS, depicts a Class 2 transformer connected to a 15 A branch circuit breaker.

Allowing this would mean that the primary overcurrent protection for a Class 2 transformer would be required to follow CE Code Rule 26-254 limiting the size of this overcurrent protection to 125% of the primary current. Prior to the rewrite of Section 16 in the 1978 CE Code, the 1975 edition of the CE Code allowed a 15 A overcurrent device in the primary circuit of a Class 2 transformer. This rule from the 1975 edition of the CE Code was deleted as part of a rewrite of Section 16 in the 1978 edition. A previous IAEI NEWS (International Association of Electrical Inspectors) article on transformer overcurrent protection raised a question by an IAEI NEWS reader regarding the maximum overcurrent protection allowed for a Class 2 transformer. As a result of the inquiry a proposal was submitted to add new Subrule 2) to Rule 16-202 Methods of installation on the supply side of overcurrent protection, transformers, or devices having Class 2 outputs. The new subrule allows a 20 A-rated overcurrent device to protect the supply side of transformers or other devices having Class 2 outputs. The rating of 20 A aligns with the product standards for transformers or other devices having Class 2 outputs.

For more information or clarification on this topic, please contact Steve Douglas at SDouglas@qps.ca

—
